Pallet-to-Person
High performance with excellent safety and adaptation!
Download Product DatasheetDownload Product Datasheet
Pallet-to-Person is a picking scenario in which pallets are delivered to operators for handling and picking tasks. It can be enabled by different robotic approaches, such as mobile robots and QuickCube. This category supports flexible deployment and efficient pallet operations in modern warehouses.
High-Quality Products
Advanced Safety Sensors
Flexibility
Wide Picking Range
High Payload Capaclty

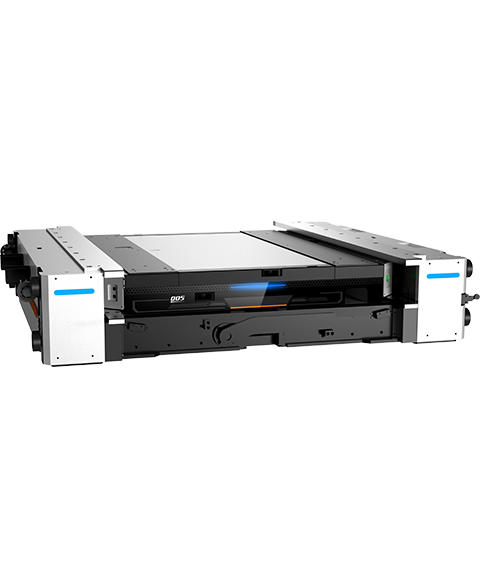

E200
Rated Load
2000kg
Safety
CE certified
PLd functional safety
Overload detection
Mechanical anti-fall protection
Mechanical blocking protection
Drive System
Servo motor
Navigation Mode
QR code + odometer
Applicable Pallet Size
L(1100-1400mm), W(800-1400mm)
Positioning Accuracy
±1mm
Operating Temperature
-15~45 °C
Maximum speed
2.0m/s
Vertical Drive Configuration
Rack and pinion
C150A(XS)
-md.webp)
Rated Load
1500kg
Lifting Height
40mm
Picking/Handling Method
Lifting
Navigation Mode
QR Code
Case/Bin/Pallet Size
L(800-1400mm), W(1100-1400mm)
Positioning Accuracy
±1mm
Storage Layers on Robot
1-6
Max No-load Speed
2.0m/s
Battery Life / Charge
>8h
H80
Rated Load
800kg
Lifting Height
60mm
Navigation Mode
QR Code
Positioning Accuracy
±10mm
Max No-load Speed
1.5m/s
Battery Life / Charge
> 8h
M100
Rated Load
1000kg
Lifting Height
60mm
Navigation Mode
QR Code
Positioning Accuracy
±10mm
Max No-load Speed
1.5m/s
Battery Life / Charge
7.5h
M150
Rated Load
1500kg
Lifting Height
60mm
Navigation Mode
QR Code
Positioning Accuracy
±10mm
Max No-load Speed
1.5m/s
Battery Life / Charge
7.5h
H200
Rated Load
2000kg
Lifting Height
60mm
Navigation Mode
QR Code / SLAM / Hybrid
Positioning Accuracy
±10mm
Maximum Speed Speed
1.2m/s
Battery Life / Charge
> 8h / < 1.5h
FD140
Rated Load
1400kg
Min. Aisle Width：2500mm
Battery Life / Charge：8h
Pallet Size：1) 1200×800; 2) 1200×1000
Navigation Mode：SLAM Navigation
Lifting Height
3000mm
Max. No-Load Speed
1.3m/s
Positioning Accuracy
±10mm
FD150
Rated Load
1500kg
Min. Aisle Width：2500mm
Battery Life / Charge：8h
Pallet Size：1) 1200×800; 2) 1200×1000
Navigation Mode：SLAM Navigation
Lifting Height
3244mm
Max. No-Load Speed
2m/s
Positioning Accuracy
±10mm
